Product Details

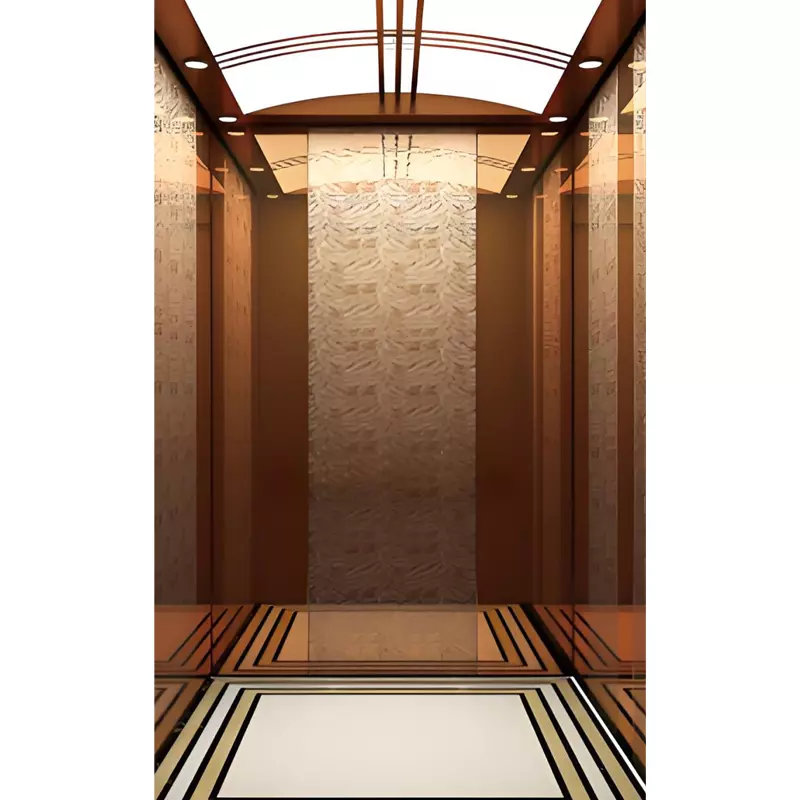

Ceiling: Rose mirror finish stainless steel frame, acrylic translucent panel, simple lamp
Carriage wall: Rose gold mirror etched stainless steel, rose gold mirror finish stainless steel
Carriage door: Textured stainless steel
Handrail: None
Floor: PVC
Villa Elevator parameters
| 别墅梯 Villa Elevator |
||
| 小值Minimum value | 大值Large value | |
| 速度(m/s) Speed |
0.4 | 1 |
| 载重(kg) Load capacity |
320 | 400 |
| 底坑深度(mm) Depth of the pit bottom |
500 | 650 |
| 顶层高度(mm) Top floor height |
3200 | 3400 |
| 开门尺寸(mm) Door opening dimensions |
700*2100 | 800*2100 |
| 井道尺寸(mm) Carriage shaft dimensions |
1500*1500 | 1800*1650 |
| 轿厢尺寸(mm) Carriage dimensions |
900*1150*2300 | 1100*1300*2300 |
| 电源Power supply | 380V/220,50HZ | 380V/220,50HZ |
Application Scenarios
