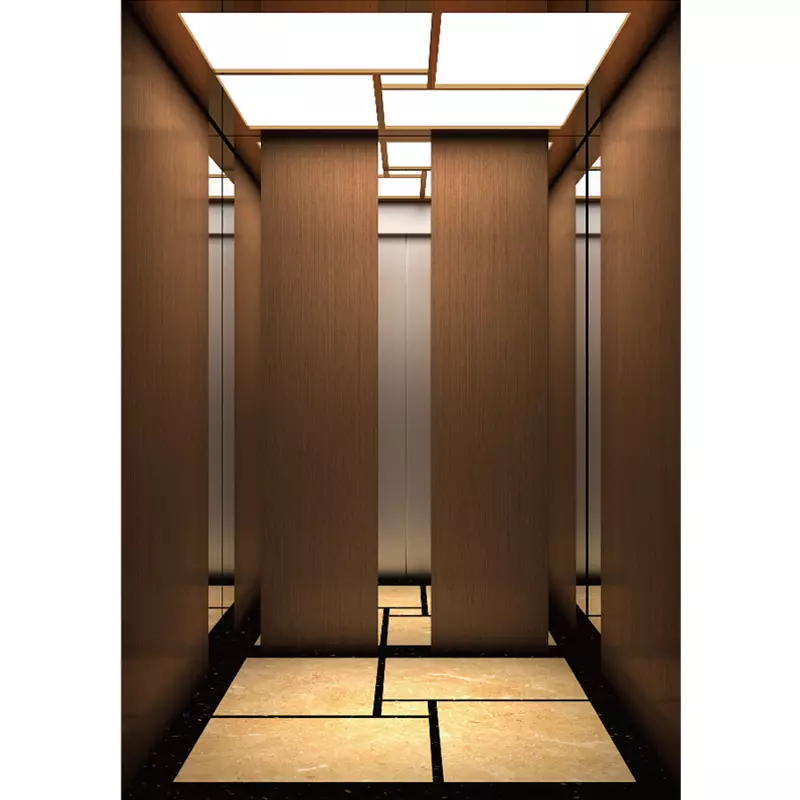

Product Details
Ceiling：Mirror stainless steel, acrylic lighting
Car door：Hairline stainless steel
Side wall：Mirror stainless steel, wood grainmakeup plate
Back wall：Mirror stainless steel, wood grainmakeup plate
Handrail：None
Floor：PVC
Passenger Elevator parameters
| 小机房客梯 MR Passenger Elevator |
无机房客梯 MRL Passenger Elevator |
|||
| 小值Minimum value | 大值Maximum value | 小值Minimum value | 大值Maximum value | |
| 速度(m/s) Speed |
1.0 | 3.0 | 1.0 | 2.0 |
| 载重(kg) Load capacity |
450 | 2000 | 450 | 1600 |
| 底坑深度(mm) Depth of the pit bottom |
1200 | 2000 | 1550 | 1750 |
| 顶层高度(mm) Top floor height |
4200 | 5000 | 4200 | 4750 |
| 开门尺寸(mm) Door opening dimensions |
800*2100 | 1200*2000 | 800*2100 | 1100*2100 |
| 井道尺寸(mm) Carriage shaft dimensions |
1800*1800 | 2900*2500 | 2000*1800 | 2800*2400 |
| 轿厢尺寸(mm) Carriage dimensions |
1200*1050*2500 | 1900*2100*2500 | 1100*1150*2500 | 1700*2000*2500 |
