Product Details
Material: Powder-coated board (standard configuration)

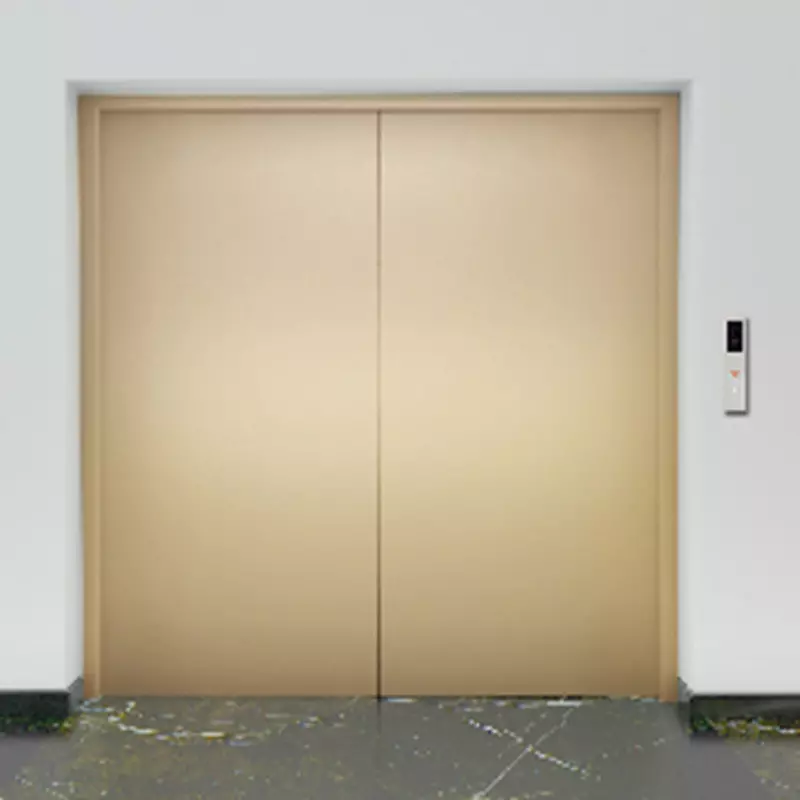

Door opening method: Split style

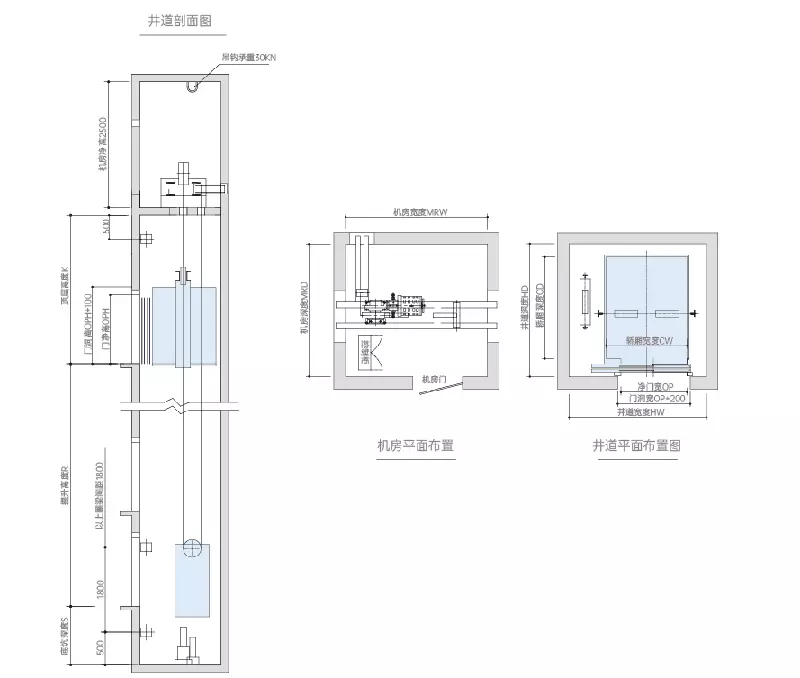

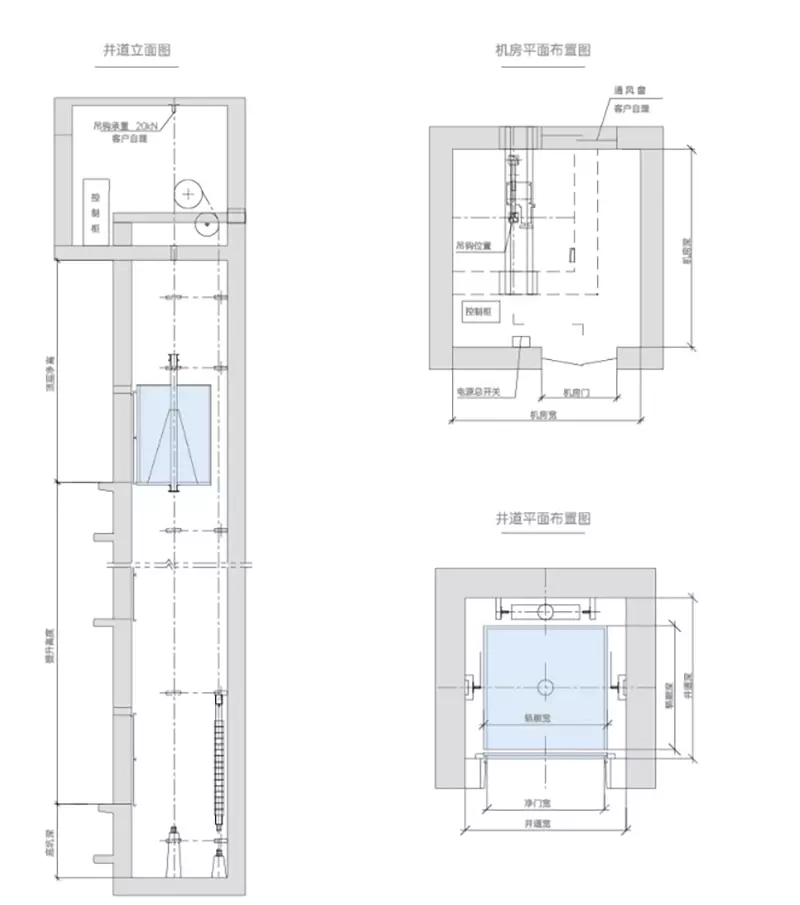

Civil engineering schematic diagram of the machine room freight elevator (2:1)

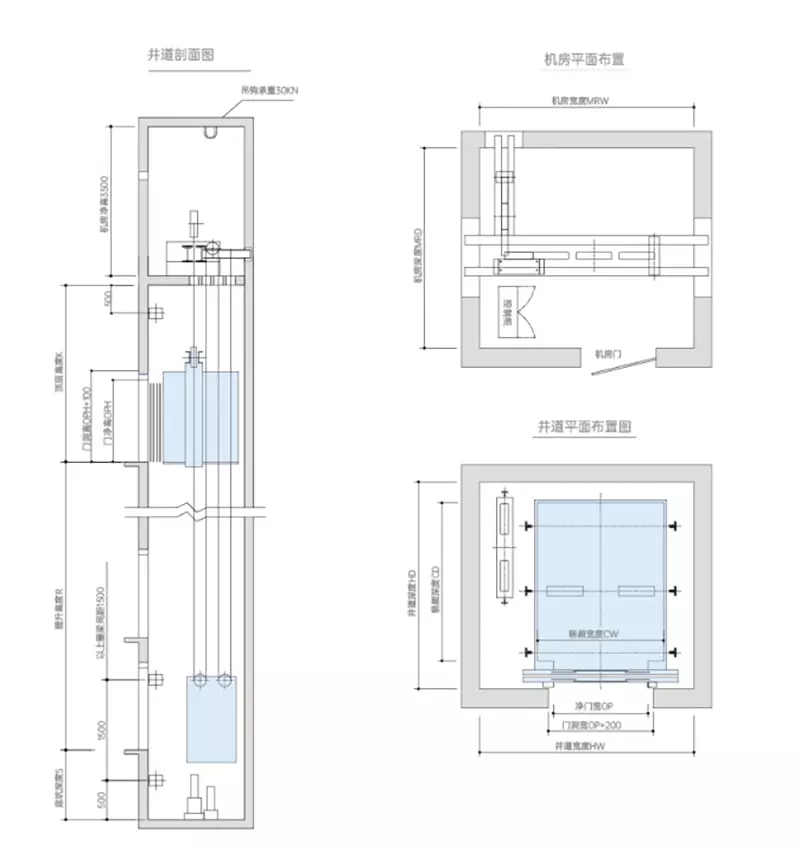

Civil engineering schematic diagram of the machine room freight elevator (4:1)

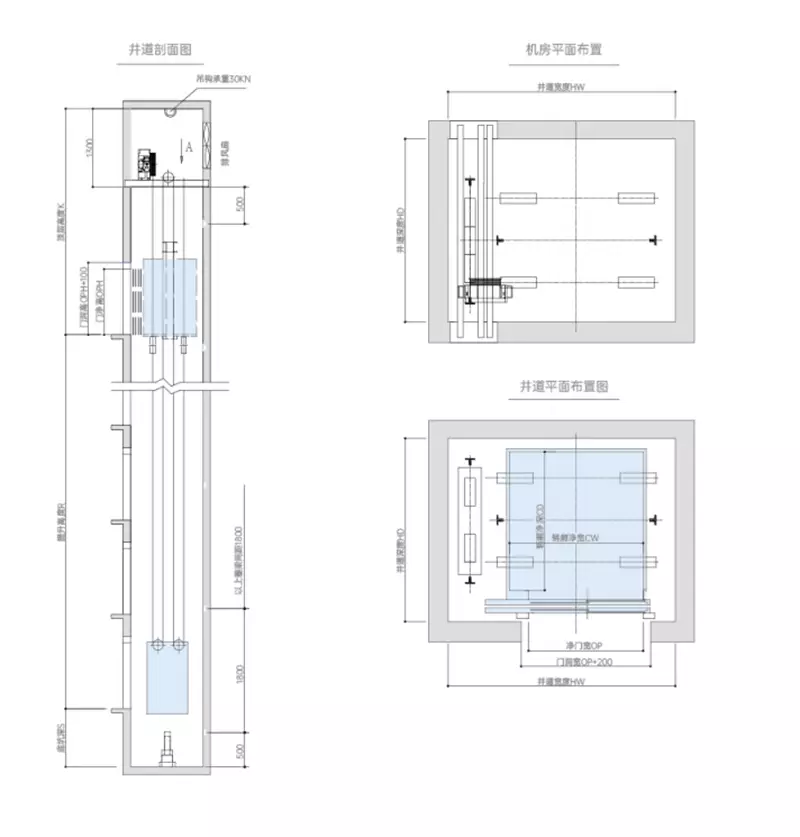

Civil engineering schematic diagram of the machine-room-less freight elevator (4:1)

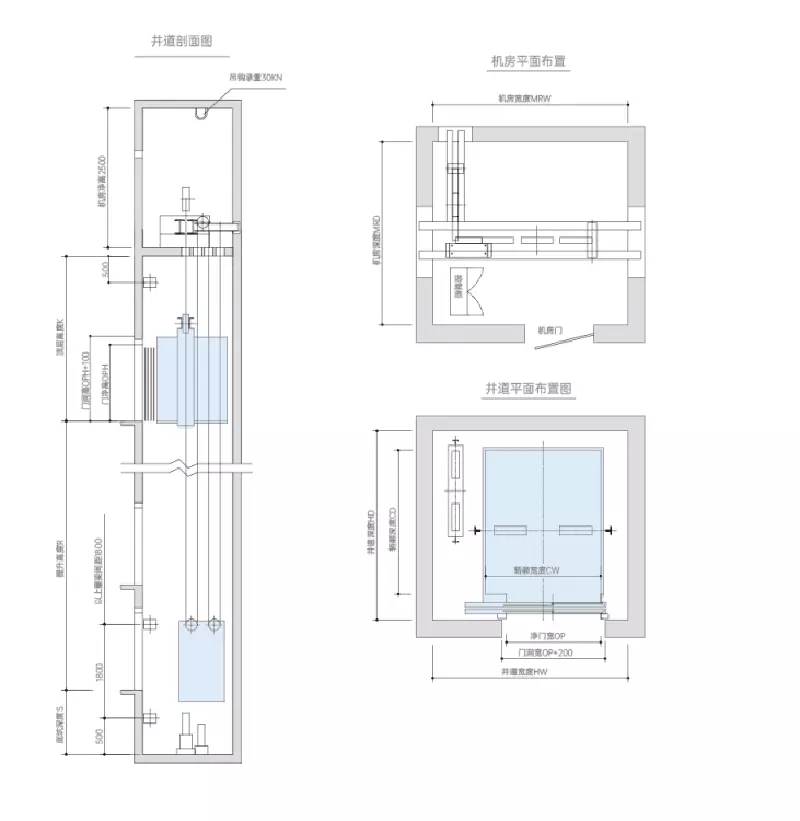

Civil engineering schematic diagram of large-tonnage freight elevator (4:1)
Civil engineering drawing of the service elevator
